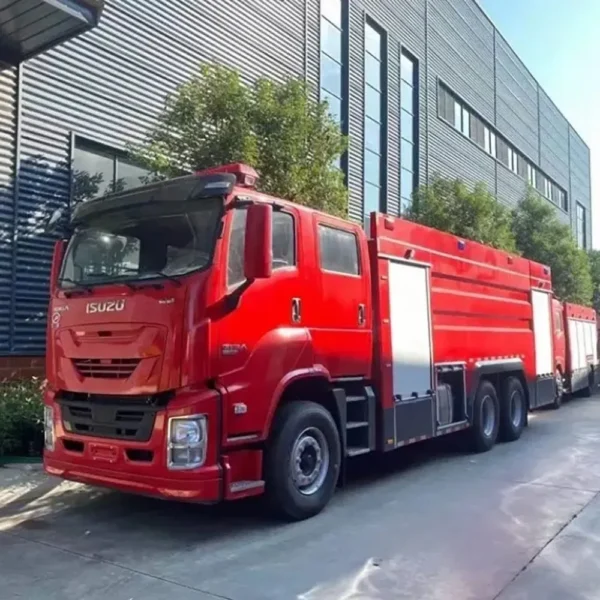

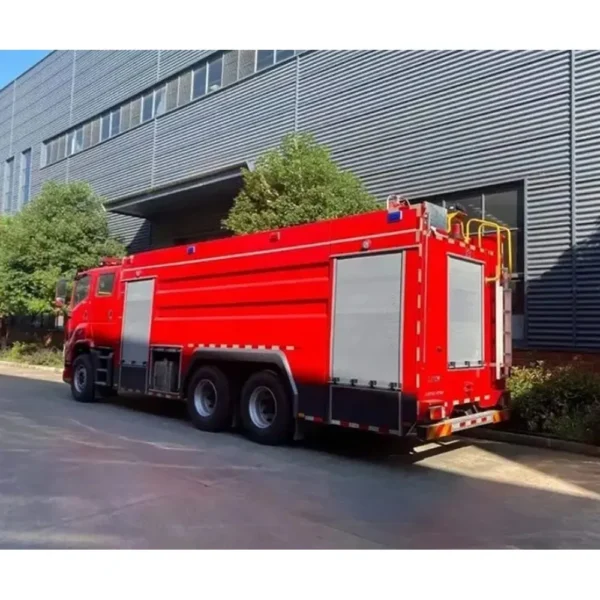

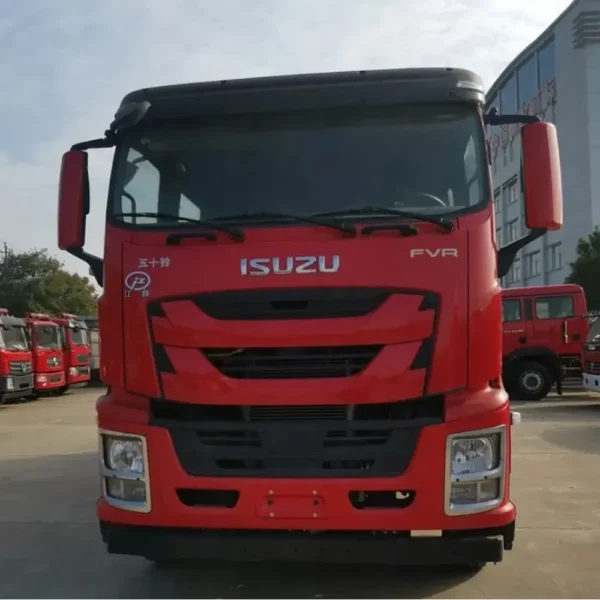

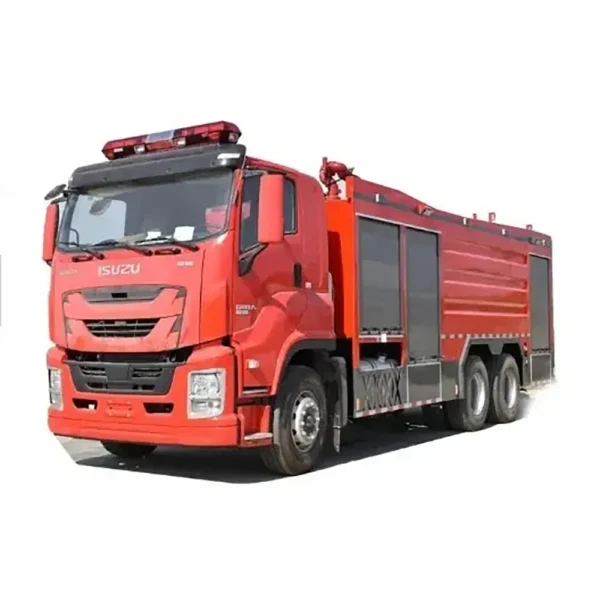

ISUZU GIGA Heavy-Duty Tri-Agent Combined Fire Truck (Water + Foam + Dry Powder)
The Isuzu Giga Tri-Agent Fire Engine is the ultimate suppression vehicle for complex industrial fires. By integrating a high-capacity liquid tank with a specialized dry powder system, this vehicle can simultaneously tackle Class A (solid), Class B (liquid/gas), and Class E (electrical) fires. Built on the premium Isuzu Giga chassis, it offers unparalleled reliability for high-risk zones including refineries, airports, and chemical parks.
Technical Specifications
| System / Component | Detailed Parameters |
|---|---|
| Chassis Model | ISUZU GIGA (Available in 6×4 or 8×4 configurations) |
| Liquid Capacity | 8,000L – 15,000L (Water + Foam Customizable) |
| Dry Powder System | 1,000kg – 2,000kg (Nitrogen Propelled) |

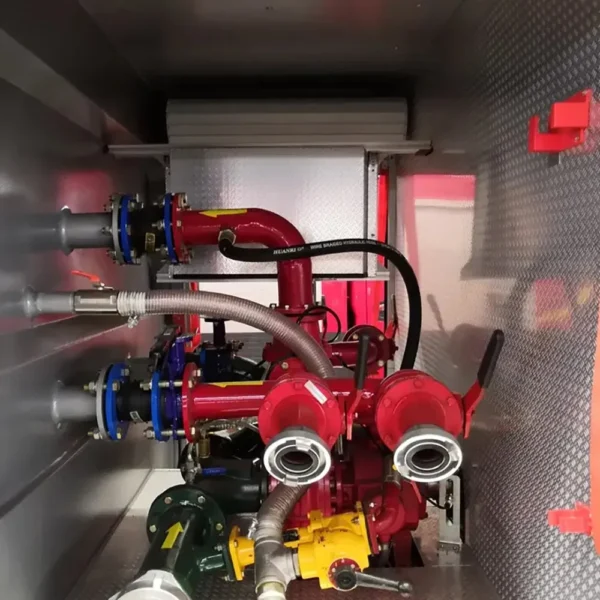

| Fire Pump | High-Flow Centrifugal Pump (60L/s – 80L/s) |
| Powder Monitor | Independent Dry Powder Cannon (Range ≥ 35m) |
| Engine Technology | Isuzu 6W Series High-Torque Diesel (350HP – 460HP) |
| Drive Side | LHD (Left Hand Drive) / RHD (Right Hand Drive) |
Why This Combined Unit is Essential
- 3-in-1 Fire Control: Features independent water, foam, and powder systems that can be deployed individually or simultaneously to create a total fire suppression barrier.
- Advanced Powder Technology: The dry powder system uses high-pressure nitrogen to ensure a rapid, high-velocity discharge that “smothers” chemical and electrical fires instantly.
- Elite Giga Chassis: Isuzu’s flagship platform provides the necessary power and structural stability to carry heavy pressurized vessels and large liquid loads.
- Long-Range Attack: Professional fire monitors allow for water/foam discharge over 60 meters, ensuring crew safety while maintaining high suppression efficiency.
- Industrial Build Quality: Features stainless steel agent tanks, specialized anti-corrosion piping, and heavy-duty aluminum alloy equipment compartments.
Primary Application Scenarios
Petrochemical Refineries
LNG/LPG Gas Depots
Large-Scale Power Substations
Hazardous Material Warehouses
LNG/LPG Gas Depots
Large-Scale Power Substations
Hazardous Material Warehouses
Chengli Special Automobile Co., Ltd
As an expert in Isuzu specialized engineering, we provide customized agent ratios for your specific safety needs. Contact us today for a 2026 technical quote and factory-direct export options!
